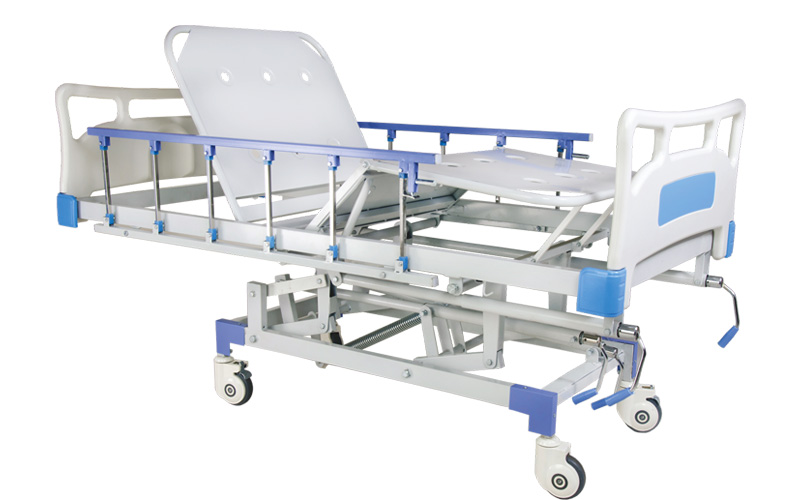

I.C.U Bed (Regular)
Tube Craft ID : TCI - HF - 302 A
Optional Accessories
Foam Mattress
Chart Holder
Technical Specifications
Dimensions : 80" x 35" x 24" to 32" ht
Mattress Platform : 78" x 33" x 3"
Other Details
► Manual operated by 4 screws
► 1st screw for height adjustment, 2nd screw for tilting bed, 3rd screw for head up position panel, 4th screw for knee bend panel, leg panel adjustable on ratchet bar.
► Bed frame made of M.S. rectangular 60 x 30 mm heavy gauge pipes.
► Polymer bows (Head & Foot) in high quality of fiber.
► M.S. powder coated collapsible side railing.
► Polymer Bows side railing.
► Heavy duty Dai. 5" caster wheels with 2 break wheel in opposite directions.
► 4 side I.V. Bar provision & 2 side urine bags hooks provided.
► Total bed epoxy powder coated.
