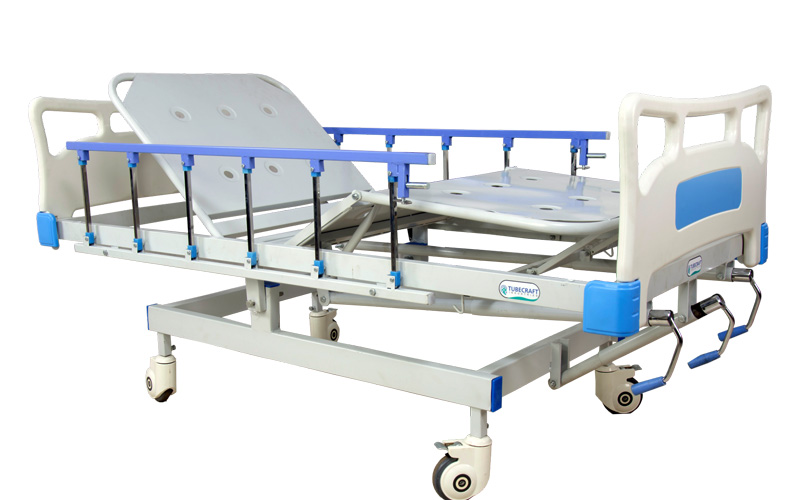

Semi I.C.U Bed (Deluxe)
Tube Craft ID : TCI - HF - 303 B
Technical Specifications
Dimensions : 80" x 35" x 24" to 32" ht
Mattress Platform : 78" x 33" x 3"
Optional Accessories
Foam Mattress
Chart Holder
Other Details
► Manual operated by 3 screws
► 1st screw for head up position panel, 2nd screw for tilting bed, 3rd screw for knee bend panel, leg panel adjustable on ratchet bar.
► Bed frame made of M.S. rectangular 60 x 30 mm heavy gauge pipes.
► S.S. side railings for head & foot.
► M.S. collapsible side railing.
► Heavy duty Dai. 5" caster wheels with 2 break wheel in opposite directions.
► 4 side I.V. Bar provision & 2 side urine bags hooks provided.
► Total bed epoxy powder coated.
